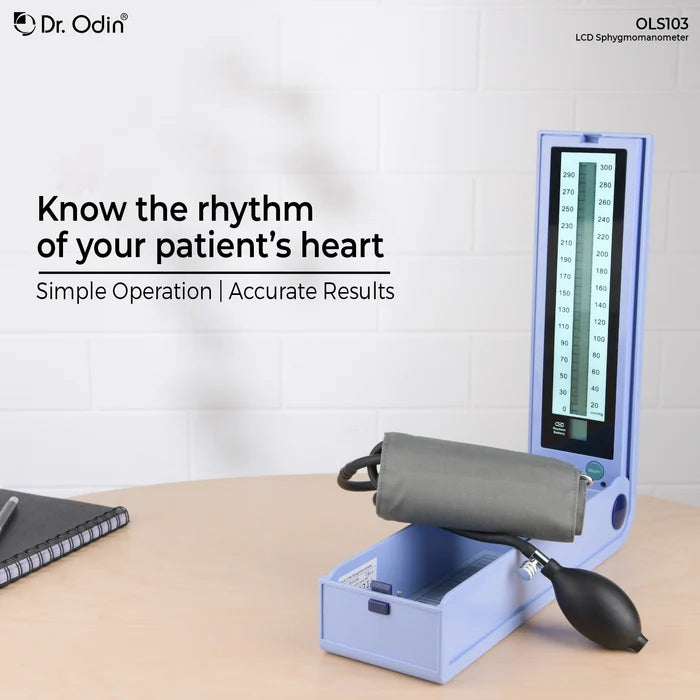

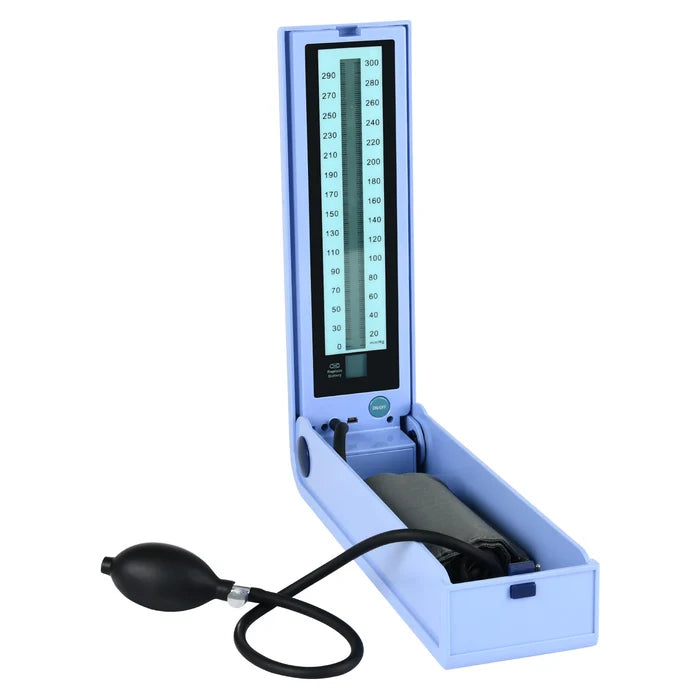

Dr. Odin OLS103 Mercury-Free LCD Sphygmomanometer

The Dr. Odin OLS103 LCD Sphygmomanometer is a mercury-free manual blood pressure monitoring device designed for clinical and home-care use. It combines a manual inflation system with a clear LCD display, allowing users to observe blood pressure readings through both the LCD column and numerical display.

Unlike a fully automatic digital BP monitor, the OLS103 uses manual cuff inflation and stethoscopy-based measurement. Its cotton cuff with D-ring closure is designed for secure positioning around the arm, while the LCD display provides a clear way to observe pressure readings.

The mercury-free design eliminates the need for mercury-based pressure measurement, making it a practical alternative for users who prefer a manual sphygmomanometer with digital readability.

Key Features

• Mercury-free manual sphygmomanometer
• Model: OLS103
• Clear LCD display
• LCD pressure column and numerical display
• 0–300 mmHg measurement range
• LCD column graduation: 2 mmHg
• Numerical display graduation: 1 mmHg
• Manual inflation using latex bulb
• Manual air-release control valve
• Stethoscopy-based blood pressure measurement
• Cotton cuff with D-ring closure
• Overpressure warning above 315 mmHg
• Pulse-rate measurement range: 30–200/min, ±5%
• Requires 3 AA batteries
• 12-month warranty
• Suitable for home and clinical settings

Why Choose Dr. Odin OLS103?

Mercury-Free Design

The OLS103 uses a mercury-free pressure measurement system, providing an alternative to traditional mercury sphygmomanometers.

Clear LCD Readout

The device combines an LCD pressure column with a numerical display, helping users observe the measurement more clearly than a traditional analogue dial. The numerical display uses 1 mmHg graduation.

Manual Measurement Control

The user manually inflates the cuff using the latex bulb and controls pressure release through the air-release valve. This makes the device suitable for users trained in manual blood pressure measurement.

0–300 mmHg Range

The LCD column and numerical display both support a listed measurement scope of 0–300 mmHg.

D-Ring Cuff

The cotton cuff features a D-ring closure designed to help with secure positioning around the arm during measurement.

Battery & External Power Options

The device uses three AA batteries and the available specifications also indicate compatibility with a USB-type AC adapter.

Benefits of Dr. Odin OLS103

• Mercury-free alternative for manual BP measurement
• Clear digital-style LCD readout
• Easy-to-observe numerical pressure display
• Manual inflation provides direct pressure control
• 0–300 mmHg measurement range
• D-ring cuff for secure positioning
• Suitable for home healthcare and clinical environments
• Compact design for storage and handling
• Includes batteries with the listed kit
• 12-month warranty

Technical Specifications

Specification	Details
Brand	Dr. Odin
Product Name	LCD Mercury-Free Sphygmomanometer
Model	OLS103
Product Type	Manual LCD Sphygmomanometer
Measurement Method	Stethoscopy
Display	LCD Column + Numerical Display
Measurement Range	0–300 mmHg
LCD Column Graduation	2 mmHg
Numerical Display Graduation	1 mmHg
Pulse Rate Range	30–200/min
Pulse Rate Accuracy	±5%
Overpressure Warning	Above 315 mmHg
Inflation	Manual latex bulb
Deflation	Manual air-release valve
Cuff	Cotton cuff with D-ring
Power	3 × AA batteries
External Power	USB-type AC adapter supported
Product Dimensions	32 × 9.5 × 6.5 cm
Warranty	12 Months
Net Quantity	1 Unit
Manufacturer	Passim Lifesciences Ltd.
Marketed By	Odin Healthcare Pvt. Ltd.
Country of Origin	India

Specifications are based on the current Dr. Odin listing and cross-checked product information.

How to Use Dr. Odin OLS103

Step 1: Prepare the Device

Insert 3 AA batteries correctly into the battery compartment if using battery power. Connect the cuff tubing to the pressure inlet.

Step 2: Position the Person

Have the person sit quietly and comfortably. The arm should be supported appropriately during measurement. Avoid talking or unnecessary movement during the reading.

Step 3: Apply the Cuff

Wrap the cuff securely around the upper arm according to the supplied instructions. Make sure the cuff is positioned correctly.

Step 4: Prepare the Stethoscope

Position the stethoscope appropriately to detect Korotkoff sounds during manual measurement.

Step 5: Inflate the Cuff

Press the bulb repeatedly to manually inflate the cuff.

Step 6: Release Pressure Gradually

Use the air-release valve to gradually reduce cuff pressure. The available instructions specify a deflation rate of approximately 2–3 mmHg per second.

Step 7: Determine the Reading

The appearance of the first Korotkoff sound corresponds to systolic pressure, while disappearance of the sound corresponds to diastolic pressure. Observe the LCD and numerical display while performing the measurement.

Step 8: Complete the Measurement

Fully release the remaining cuff pressure, remove the cuff and switch off the device after use.

Manual blood pressure measurement should be performed by a trained healthcare professional or by a user who has received appropriate instruction.

Important Blood Pressure Measurement Tips

For more consistent measurements:

• Sit quietly before taking the reading.
• Keep your arm properly supported.
• Use the correct cuff positioning.
• Avoid talking or moving during measurement.
• Release cuff pressure gradually.
• Use the same measurement procedure consistently.
• Take multiple readings when advised by your healthcare professional.
• Record readings when monitoring blood pressure over time.

Correct cuff placement and manual measurement technique are important because the OLS103 relies on stethoscopy and manual pressure control rather than fully automatic measurement.

Safety & Precautions

• Read the user manual before first use.
• Do not use the device if the cuff, tubing, bulb or display is damaged.
• Do not overinflate the cuff unnecessarily.
• Do not place the stethoscope chest piece underneath the cuff.
• Keep the device away from direct sunlight.
• Avoid sharp tools that could damage the cuff or tubing.
• Clean the device with a damp cloth.
• Do not use solvents for cleaning.
• Remove the batteries if the device will remain unused for an extended period.
• Store in a cool, dry location.
• Replace batteries when the low-battery indication appears.
• Keep the device away from children.

The manufacturer's care guidance specifically recommends avoiding sharp tools, direct sunlight and solvents, while storing the device in a cool, dry location and removing the battery when it will not be used for some time.

Who Can Use Dr. Odin OLS103?

The OLS103 can be suitable for:

• Doctors and healthcare professionals
• Clinics and consultation rooms
• Nursing students
• Medical students learning manual BP measurement
• Home users familiar with manual sphygmomanometer operation
• Healthcare facilities requiring a mercury-free manual BP monitor

It is particularly appropriate where a manual stethoscopic BP measurement method with an LCD readout is preferred.

Dr. Odin OLS103 vs Automatic Digital BP Monitor

Feature	Dr. Odin OLS103	Automatic Digital BP Monitor
Measurement Method	Manual + stethoscopy	Automatic electronic
Inflation	Manual	Automatic
Display	LCD column + numerical display	Digital screen
Mercury	Mercury-free	Mercury-free
Stethoscope	Required for measurement	Generally not required
User Skill	Higher	Easier for general users
Pressure Control	Manual	Automatic
Batteries	3 AA	Model dependent
Best For	Manual BP monitoring	Convenient home monitoring

Important: The OLS103 should not be described as a fully automatic digital BP machine. Its defining feature is the combination of manual sphygmomanometer operation with LCD readout.

What's Included in the Box?

For the standard OLS103 listing:

• 1 × Dr. Odin OLS103 LCD Sphygmomanometer
• 1 × Cotton cuff
• 1 × Latex bulb and bladder system
• 3 × AA batteries
• 1 × User manual

The separate LCD Sphygmomanometer with Stethoscope variant additionally includes a stethoscope. Do not list the stethoscope as included on this product page unless your MedIN SKU is specifically the stethoscope bundle.

Frequently Asked Questions

1. What is Dr. Odin OLS103?

Dr. Odin OLS103 is a mercury-free LCD sphygmomanometer designed for manual blood pressure measurement.

2. Is OLS103 a fully automatic BP monitor?

No. It uses manual cuff inflation and stethoscopy for blood pressure measurement.

3. What is the measurement range?

The listed measurement range is 0–300 mmHg.

4. Does OLS103 use mercury?

No. It is designed as a mercury-free sphygmomanometer.

5. Does it have an LCD display?

Yes. It has an LCD pressure column as well as a numerical display for observing the measurement.

6. How many batteries does it require?

The standard specification lists 3 AA batteries.

7. Does the standard OLS103 include a stethoscope?

The standard OLS103 product listing does not list a stethoscope among the included components. A separate OLS103 kit with stethoscope is available.

8. What is the warranty period?

The current Dr. Odin listing specifies a 12-month warranty.

9. What is the product size?

The listed product dimensions are 32 × 9.5 × 6.5 cm.

10. What does the overpressure warning indicate?

The listed specifications indicate an overpressure warning when pressure exceeds 315 mmHg.
