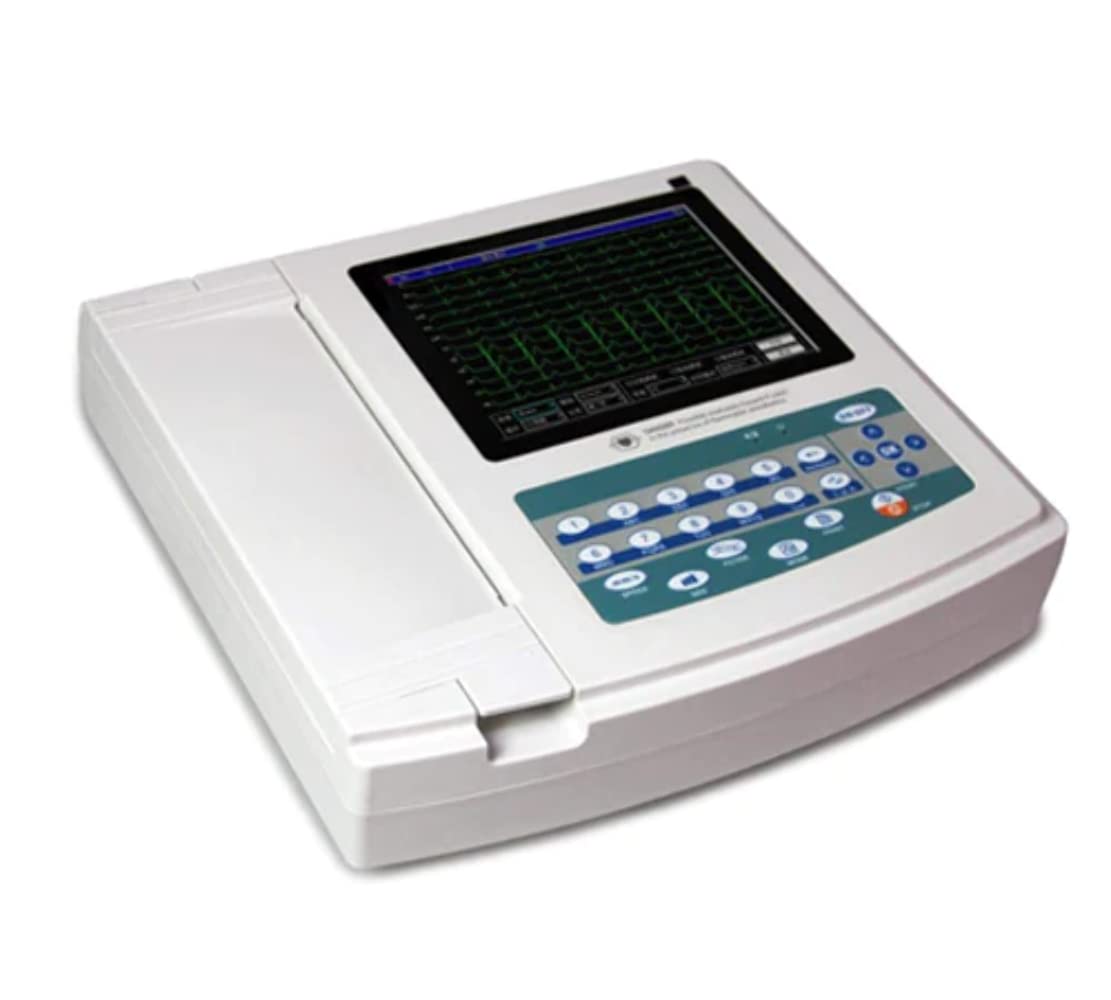

The Contec ECG1200G 12-Channel ECG Machine is a digital electrocardiograph designed for recording and displaying 12-lead ECG signals simultaneously. It is intended for professional healthcare environments such as hospitals, clinics, diagnostic centres and other medical facilities where routine ECG recording is required.

The ECG1200G uses digital signal processing to help produce clear ECG waveforms and incorporates filters for power-frequency interference, baseline drift and EMG interference. It supports automatic, rhythm and manual recording modes and can print ECG reports using its built-in thermal printing system.

Depending on the exact ECG1200G configuration supplied, the machine may include features such as a colour display, touchscreen operation, rechargeable battery, internal case storage and USB/LAN connectivity. MEDIN should verify the exact variant supplied before publishing configuration-specific specifications. Contec's product information confirms the ECG1200G platform supports 12-lead acquisition, digital processing, thermal printing and multiple display/recording functions.

Why Choose This Product?

The Contec ECG1200G is designed for healthcare professionals who need a 12-channel digital ECG machine for routine electrocardiography.

Key reasons to consider it:

• 12-lead ECG acquisition
• Simultaneous ECG signal collection
• Digital signal processing
• Built-in thermal printing
• AC and rechargeable battery operation on applicable configurations
• Power-frequency interference filtering
• Baseline drift filtering
• EMG interference filtering
• Automatic, manual and rhythm recording modes
• ECG parameter measurement and analysis
• Multiple paper speeds
• Adjustable sensitivity
• Compact design for clinical environments
• Suitable for hospitals, clinics and diagnostic facilities

Key Features

12-Lead ECG Acquisition

The ECG1200G can collect 12-lead ECG signals simultaneously, providing a comprehensive recording of the heart's electrical activity.

Digital Signal Processing

Digital processing is used to obtain ECG waveforms while the machine's filtering system helps reduce common sources of interference.

ECG Interference Filters

The system supports filtering for:

• AC/power-frequency interference
• Baseline drift
• EMG interference

These filters are intended to improve waveform presentation and reduce unwanted signal interference during ECG recording.

Built-In Thermal Printer

The ECG1200G uses a thermal printing system for generating ECG records without requiring a separate printer. The commonly documented configuration uses 210 mm wide thermal paper.

Multiple Recording Modes

The ECG1200G supports:

• Automatic recording
• Manual recording
• Rhythm recording

This allows the operator to select an appropriate recording method depending on the clinical workflow.

Adjustable Paper Speed

Documented paper-speed options include 5, 6.25, 10, 12.5, 25 and 50 mm/s, depending on recording mode.

ECG Parameter Analysis

The ECG1200G can measure ECG parameters such as heart rate and intervals including PR, QRS and QT/QTc, along with axis-related parameters in supported configurations.

Benefits

• Supports comprehensive 12-lead ECG recording
• Useful for routine ECG examination in clinical settings
• Simultaneous lead acquisition simplifies ECG recording
• Built-in printer allows reports to be printed directly
• Digital filtering helps reduce common ECG signal interference
• Multiple recording modes provide workflow flexibility
• Adjustable paper speed supports different recording requirements
• Battery operation can support use away from a fixed power source where applicable
• Compact form factor is suitable for hospitals and clinics
• ECG data and measurements can be reviewed using supported device functions

Technical Specifications

Frequently Asked Questions

1. What is the Contec ECG1200G?

The Contec ECG1200G is a digital 12-channel, 12-lead electrocardiograph designed for recording ECG signals in professional healthcare settings.

2. Is the Contec ECG1200G a 12-lead ECG machine?

Yes. It supports standard 12-lead ECG acquisition and simultaneous collection of ECG signals.

3. Does the Contec ECG1200G have a built-in printer?

Yes. The ECG1200G uses a built-in thermal printing system for ECG recording.

4. What type of paper does the ECG1200G use?

Available ECG1200G specifications list 210 mm × 20 m thermal paper. Confirm the exact paper specification with the supplied model before ordering replacement rolls.

5. Does the ECG1200G support automatic ECG analysis?

Documented ECG1200G specifications include automatic measurement and analysis of ECG parameters. However, automated analysis should be considered an aid to the healthcare professional, not a replacement for professional ECG interpretation.

6. Does the ECG machine have ECG filters?

Yes. The ECG1200G supports filters for power-frequency interference, baseline drift and EMG interference.

7. Can the ECG1200G operate on battery power?

Documented configurations include a rechargeable lithium battery in addition to AC power. Verify the battery configuration of the specific unit being supplied.

8. What recording speeds are available?

Available specifications list recording speeds ranging from 5 to 50 mm/s, with different options available depending on the recording mode.

9. Is the Contec ECG1200G suitable for hospitals?

Yes. It is designed for professional ECG recording and is marketed for healthcare settings including hospitals, clinics and diagnostic facilities.

10. Can this ECG machine diagnose heart disease automatically?

The device can provide ECG measurements and automated interpretation features on supported configurations, but the results should be reviewed by a qualified healthcare professional. The machine should not be marketed as independently replacing clinical diagnosis.
