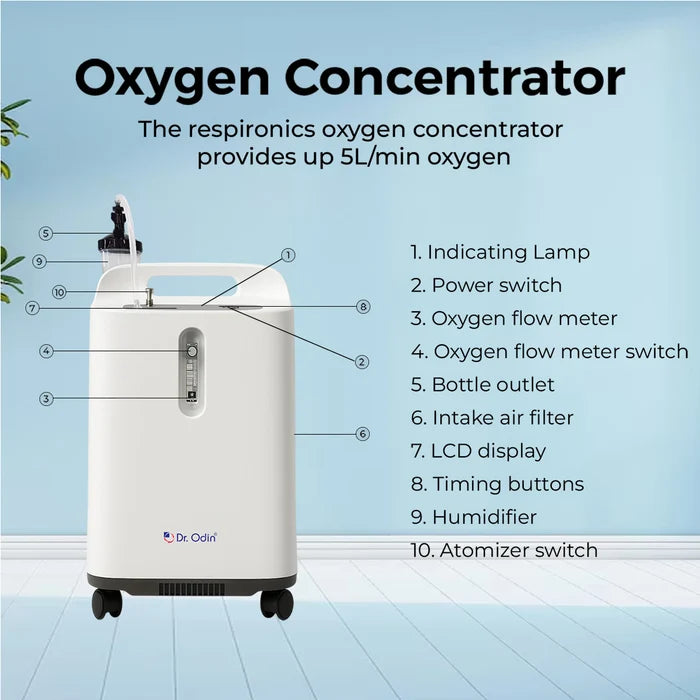

Dr. Odin OCN103 5 LPM Oxygen Concentrator

The Dr. Odin OCN103 Oxygen Concentrator is a medical oxygen concentrator designed to provide a continuous supply of concentrated oxygen for prescribed oxygen therapy. It offers an adjustable oxygen flow range of 0.5 to 5 L/min and a listed oxygen concentration of 93% ±3%.

The OCN103 features multiple safety functions, including overload protection, thermal protection, pressure monitoring and a low-oxygen concentration alert. A humidifier bottle and nasal oxygen tube are included to support the setup.

With its wheeled design and compact form factor, the OCN103 can be positioned conveniently in a home healthcare environment. The unit weighs 16.5 kg and operates on AC 230V, 50Hz. 

Key Features

• 5 LPM Oxygen Flow: Adjustable oxygen output from 0.5 to 5 L/min.
• 93% ±3% Oxygen Concentration: Listed oxygen concentration specification for the operating flow range.
• Continuous Oxygen Supply: Designed to provide a continuous oxygen output.
• Overload Protection: Safety system designed to shut down the unit during electrical overload conditions.
• Thermal Protection: Built-in protection helps respond to excessive temperature.
• Pressure Monitoring: Alerts the user to abnormal pressure conditions.
• Low-Oxygen Alert: Warning system indicates when oxygen concentration drops.
• Built-In Humidifier Setup: Includes a humidifier bottle for use with the oxygen output.
• Nasal Oxygen Tube Included: Supplied with the unit.
• Wheeled Design: Makes the 16.5 kg concentrator easier to reposition.
• 12-Month Warranty: Covered by a one-year warranty.

Why Choose Dr. Odin OCN103?

5 LPM Adjustable Oxygen Flow

The OCN103 provides an adjustable oxygen flow range from 0.5 to 5 L/min, allowing the flow setting to be selected according to the prescribed oxygen requirement.

High Oxygen Concentration

The listed oxygen concentration is 93% ±3%, providing a clearly specified performance parameter for the concentrator.

Multiple Safety Alerts

The OCN103 incorporates several safety systems covering electrical overload, excessive temperature, pressure changes and reduced oxygen concentration. These features are useful for monitoring the operating condition of the machine.

Humidifier Bottle Included

The package includes a humidifier bottle. Humidification can help add moisture to oxygen delivered through the system when used according to the device instructions and clinical guidance.

Designed for Home Healthcare

The concentrator's wheeled construction allows it to be moved within the home or care environment when required. It is suitable for use only according to the oxygen therapy plan provided by a healthcare professional.

Benefits

• Adjustable oxygen flow from 0.5 to 5 L/min
• Listed oxygen concentration of 93% ±3%
• Continuous oxygen output
• Multiple built-in safety protection systems
• Low-oxygen concentration warning
• Pressure monitoring
• Humidifier bottle included
• Nasal oxygen tube included
• Easy to reposition with wheels
• Suitable for prescribed home oxygen therapy
• 12-month warranty

Technical Specifications

The specifications above are taken from the current Dr. Odin product listing.

How to Use

1. Place the oxygen concentrator on a stable, flat surface.
2. Keep the unit approximately 1–2 feet away from walls or furniture so the air vents have sufficient clearance.
3. Keep the concentrator away from cigarettes, flames and other ignition sources.
4. Fill the humidifier bottle with clean water between the marked minimum and maximum levels.
5. Secure the humidifier bottle in its holder.
6. Connect the oxygen tubing to the humidifier outlet as instructed.
7. Connect the nasal cannula to the oxygen tubing.
8. Plug the concentrator into the appropriate AC power supply.
9. Switch the machine on and allow it to operate as instructed.
10. Set the oxygen flow to the L/min prescribed by your healthcare professional.
11. Position the nasal cannula correctly before starting oxygen therapy.

The manufacturer instructions specify keeping adequate clearance around the machine, using the humidifier bottle correctly and setting the flow according to the prescribed LPM.

Important Safety Information

• Use the oxygen concentrator only according to medical advice and the supplied instructions.
• Do not change the prescribed oxygen flow rate without guidance from a healthcare professional.
• Keep the concentrator away from open flames, cigarettes and sources of ignition.
• Do not smoke while using or near the oxygen concentrator.
• Maintain adequate ventilation around the machine.
• Do not place the concentrator directly against a wall or furniture.
• Use an appropriate voltage stabilizer as recommended by the manufacturer.
• Do not operate the device in excessively dusty environments.
• Keep the machine away from children.
• Stop using the machine and seek technical assistance if a safety alarm or abnormal operating condition occurs.

Care & Maintenance

• Clean the unit regularly according to the user manual.
• Keep the external surface free from dust.
• Avoid operating the concentrator in dusty environments.
• Clean the unit filters regularly.
• Replace filters according to the manufacturer's recommended schedule.
• Empty and clean the humidifier bottle regularly.
• Use clean water in the humidifier.
• Check oxygen tubing regularly for kinks or damage.
• Keep the tubing straight during use.
• Store accessories clean and dry.
• Keep the concentrator approximately 1–2 feet away from the wall during operation.

The current manufacturer page recommends weekly filter cleaning and replacement every three months, while also advising users to keep the machine away from dusty environments.

Who Is This Oxygen Concentrator Suitable For?

The Dr. Odin OCN103 may be considered for:

• Home oxygen therapy setups
• Patients using prescribed supplemental oxygen
• Home healthcare environments
• Clinics
• Nursing and care facilities
• Healthcare professionals requiring a stationary oxygen concentrator

Medical supervision is recommended. Oxygen flow and duration should be based on the patient's prescribed oxygen therapy plan.

What’s Included in the Box?

• 1 × Dr. Odin OCN103 Oxygen Concentrator
• 1 × Intake Air Filter
• 1 × Nasal Oxygen Tube
• 1 × Humidifier Bottle

The current product listing confirms these items as included.

Oxygen Concentrator vs Oxygen Cylinder

An oxygen concentrator works by taking in surrounding air and concentrating oxygen for delivery through the oxygen outlet. Unlike a conventional oxygen cylinder, it does not require routine cylinder refilling.

The OCN103 is designed for connection to a continuous electrical power supply and therefore depends on appropriate electricity availability during operation.

Frequently Asked Questions

1. What is the Dr. Odin OCN103?

The Dr. Odin OCN103 is a medical oxygen concentrator designed to provide concentrated oxygen through an adjustable oxygen flow system.

2. What is the maximum oxygen flow of the OCN103?

The listed oxygen flow range is 0.5 to 5 L/min, making 5 LPM the maximum specified flow.

3. What is the oxygen concentration?

The manufacturer lists an oxygen concentration of 93% ±3%.

4. Is the OCN103 suitable for home use?

It can be used in a home healthcare environment when oxygen therapy has been prescribed and the device is operated according to medical guidance and the manufacturer's instructions.

5. Does the OCN103 come with a humidifier bottle?

Yes. A humidifier bottle is included with the oxygen concentrator.

6. Is a nasal oxygen tube included?

Yes. The package includes a nasal oxygen tube.

7. Does the OCN103 have safety alarms?

Yes. The device includes safety functions for overload, excessive temperature, pressure changes and reduced oxygen concentration.

8. What power supply does the OCN103 use?

The listed power supply is AC 230V, 50Hz.

9. How much does the OCN103 weigh?

The listed net weight is 16.5 kg.

10. What is the warranty period?

The OCN103 comes with a 12-month warranty.

11. What is the operating temperature range?

The listed operating environment temperature is 5°C to 40°C.

12. Can I set the oxygen flow myself?

The flow should be set according to the prescription or instructions provided by a qualified healthcare professional. Do not change prescribed oxygen settings without medical guidance.
