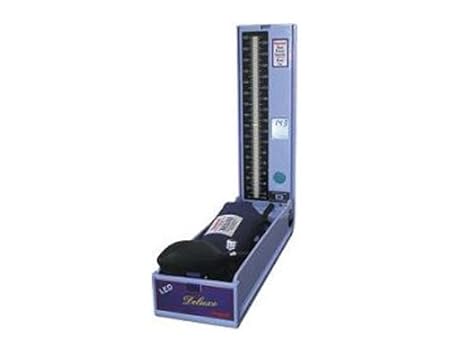

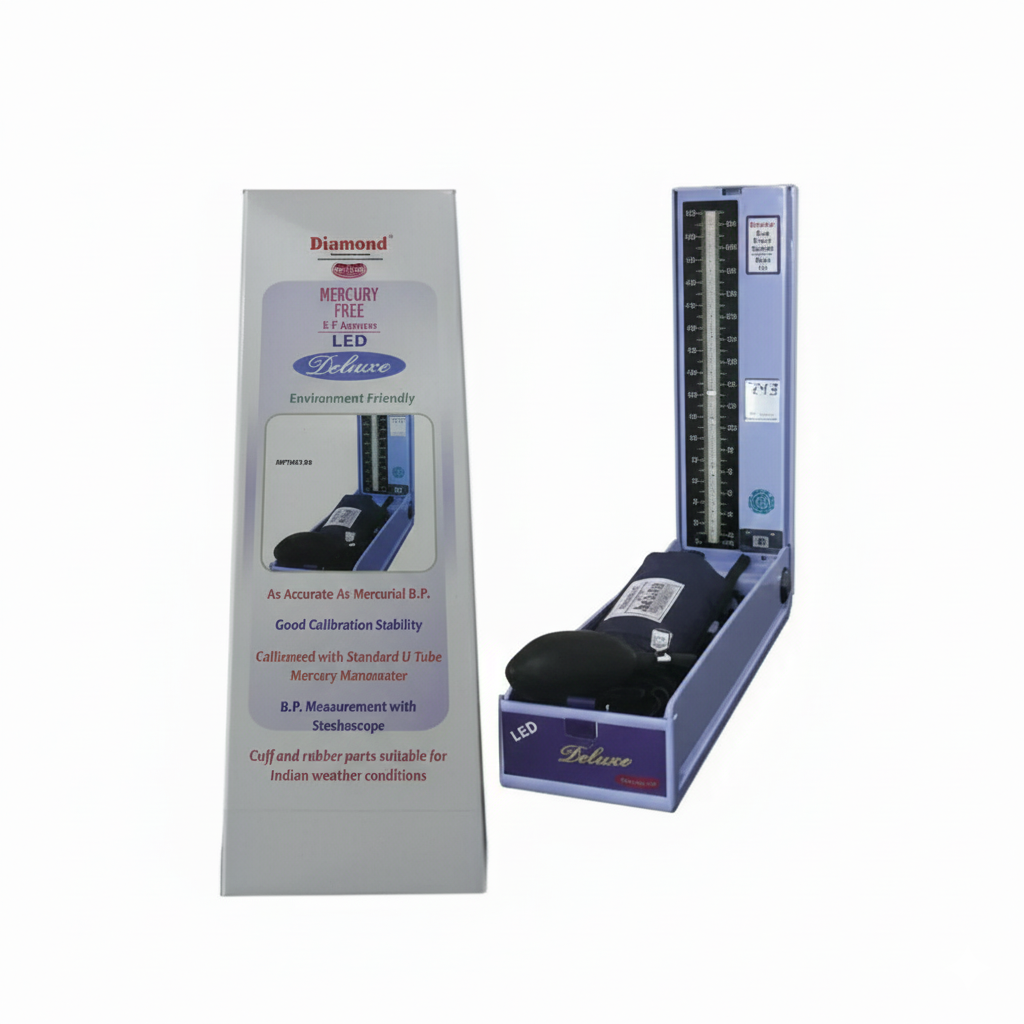

The Diamond BPDG141 LED Deluxe Blood Pressure Monitor is a mercury-free electronic blood pressure apparatus designed for manual blood pressure measurement. It combines traditional auscultatory measurement with an electronic LED pressure column and numeric LCD display, providing an alternative to conventional mercury-column BP instruments.
The BPDG141 uses the Korotkoff sound method with a stethoscope. The cuff is manually inflated using a rubber bulb, while pressure is released using a hand-held control valve. This makes it different from fully automatic digital BP monitors that automatically inflate the cuff and calculate the reading.
The monitor provides a 0–280 mmHg LED column range and 0–300 mmHg numeric display range, with 2 mmHg LED resolution and 1 mmHg numeric resolution. Diamond specifies pressure accuracy of ±4 mmHg and pulse accuracy of ±5%. The device supports battery operation as well as operation through a USB adaptor.
USB Adaptor Note: The product specifications confirm USB adaptor support, but they do not clearly confirm whether the USB adaptor is included in the standard package. Please refer to the actual package contents for accessory confirmation.
Why Choose This Product?
The Diamond BPDG141 is suitable for users looking for a manual blood pressure apparatus with an electronic pressure display rather than a conventional mercury-column device.
Key reasons to choose the BPDG141:
- Diamond BPDG141 LED Deluxe model
- Mercury-free electronic design
- Manual cuff inflation
- Korotkoff sound measurement method
- LED pressure column
- Numeric LCD display
- Pulse-rate display
- Battery operation
- USB adaptor operation support
- 1 mmHg numeric display resolution
- 2 mmHg LED column resolution
- 0–300 mmHg numeric display range
- 14.5 × 51 cm cuff
- Suitable for trained users and healthcare environments
Key Features
LED Pressure Column
The BPDG141 uses an LED pressure column to provide a visual representation of pressure during measurement. Diamond specifies a 2 mmHg resolution for the LED column.
Numeric LCD Display
Along with the LED column, the monitor provides a numeric LCD display with a specified 1 mmHg resolution, allowing pressure values to be viewed numerically.
Mercury-Free Design
The BPDG141 is designed as a mercury-free electronic alternative to traditional mercury-column blood pressure apparatus.
Manual Cuff Inflation
The cuff is inflated manually using a rubber bulb. Pressure is controlled using a hand-held pressure-control valve.
Korotkoff Sound Method
The device uses the Korotkoff sound method with a stethoscope for auscultatory blood pressure measurement.
Pulse Display
The monitor also provides a pulse-rate display. Diamond specifies ±5% pulse accuracy.
Dual Power Support
The BPDG141 supports operation using batteries or a USB adaptor.
Note: USB adaptor operation is specified, but inclusion of the adaptor in the product package is not clearly confirmed in the available specifications.
Deluxe Cuff
The specified cuff size is 14.5 × 51 cm.
Benefits
- Mercury-free alternative to traditional mercury BP apparatus
- LED pressure column for visual pressure indication
- Numeric LCD display for pressure readings
- Manual operation for auscultatory BP measurement
- Pulse-rate display
- Battery and USB adaptor operating options
- No mercury column to handle
- Suitable for clinical and healthcare environments
- Useful for trained users familiar with manual BP measurement
- Combines traditional auscultatory technique with electronic display
- Provides both visual and numeric pressure information
Technical Specifications
| Specification |
Details |
| Brand |
Diamond |
| Model |
BPDG141 |
| Product Name |
LED Deluxe Blood Pressure Monitor |
| Product Type |
Mercury-Free BP Apparatus |
| Measurement Method |
Auscultation with Stethoscope |
| Measurement Technique |
Korotkoff Sound Method |
| Display |
LED Column + Numeric LCD |
| LED Column Resolution |
2 mmHg |
| Numeric Display Resolution |
1 mmHg |
| LED Column Pressure Range |
0–280 mmHg |
| Numeric Display Pressure Range |
0–300 mmHg |
| Pressure Accuracy |
±4 mmHg |
| Pulse Accuracy |
±5% |
| Pulse Display |
Yes |
| Cuff Size |
14.5 × 51 cm |
| Inflation |
Manual Rubber Bulb |
| Deflation |
Hand-Held Pressure-Control Valve |
| Power |
Battery + USB Adaptor Support |
| USB Adaptor |
Supported; inclusion in box as per package specifications |
| Technology |
Electronic / Mercury-Free |
| Calibration |
Calibrated with standard U-tube mercury manometer |
| Sensor |
New Sensor Technology |
| Operating Environment |
+10°C to +40°C |
| Storage Environment |
-20°C to +60°C |
| Mercury |
Mercury-Free |
| Warranty |
As per manufacturer specifications |
| Country of Origin |
As per manufacturer specifications |
Frequently Asked Questions
1. What is the Diamond BPDG141?
The Diamond BPDG141 is a mercury-free LED Deluxe blood pressure apparatus that uses manual cuff inflation and the Korotkoff sound method with a stethoscope.
2. Is the Diamond BPDG141 fully automatic?
No. The cuff is manually inflated using a rubber bulb, and the blood pressure measurement is performed using the auscultatory method with a stethoscope.
3. Is the Diamond BPDG141 mercury-free?
Yes. The BPDG141 is specified as a mercury-free electronic blood pressure apparatus.
4. What type of display does the BPDG141 have?
It features both an LED pressure column and a numeric LCD display.
5. What is the pressure range of the Diamond BPDG141?
The LED column has a specified range of 0–280 mmHg, while the numeric display has a range of 0–300 mmHg.
6. What is the resolution of the BPDG141?
The LED column has a specified resolution of 2 mmHg, while the numeric display has a resolution of 1 mmHg.
7. Does the Diamond BPDG141 display pulse rate?
Yes. The device includes a pulse-rate display, with Diamond specifying ±5% pulse accuracy.
8. Can the Diamond BPDG141 be operated using a USB adaptor?
Yes. The BPDG141 supports operation using a USB adaptor. However, the available specifications do not clearly confirm whether the USB adaptor is included in the standard package.
9. What cuff size does the BPDG141 use?
The specified cuff size is 14.5 × 51 cm.
10. Is the Diamond BPDG141 suitable for home use?
It can be used for home monitoring when operated correctly. However, users should understand manual cuff inflation and auscultatory blood pressure measurement before using this type of apparatus.
