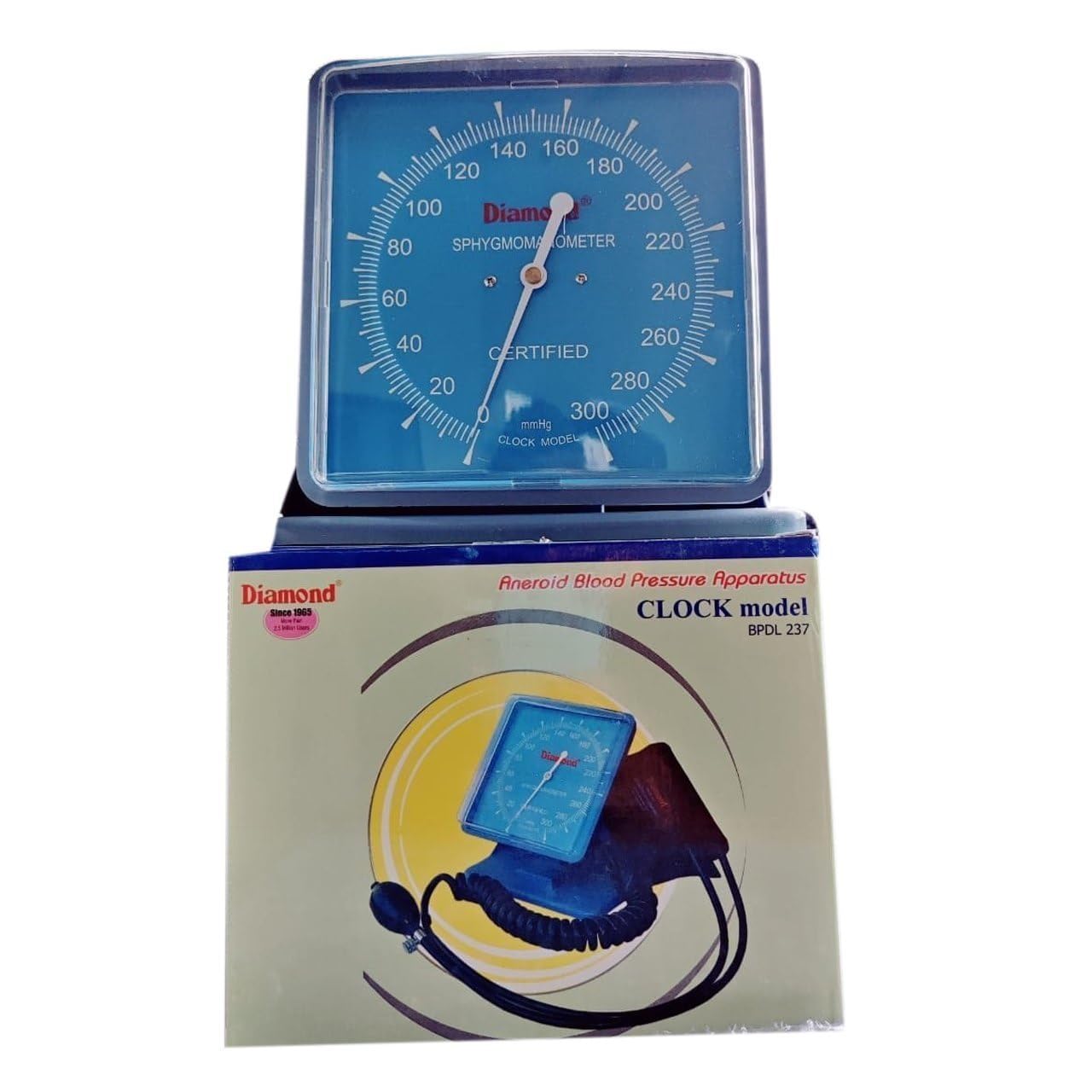

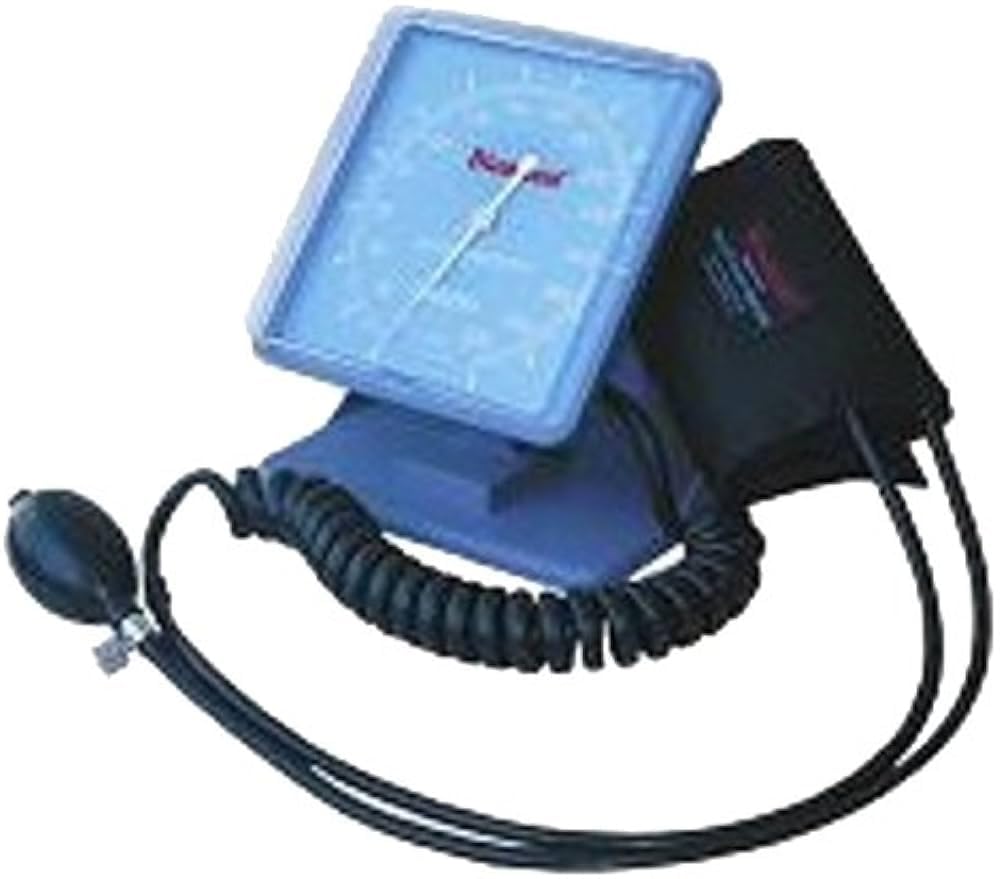

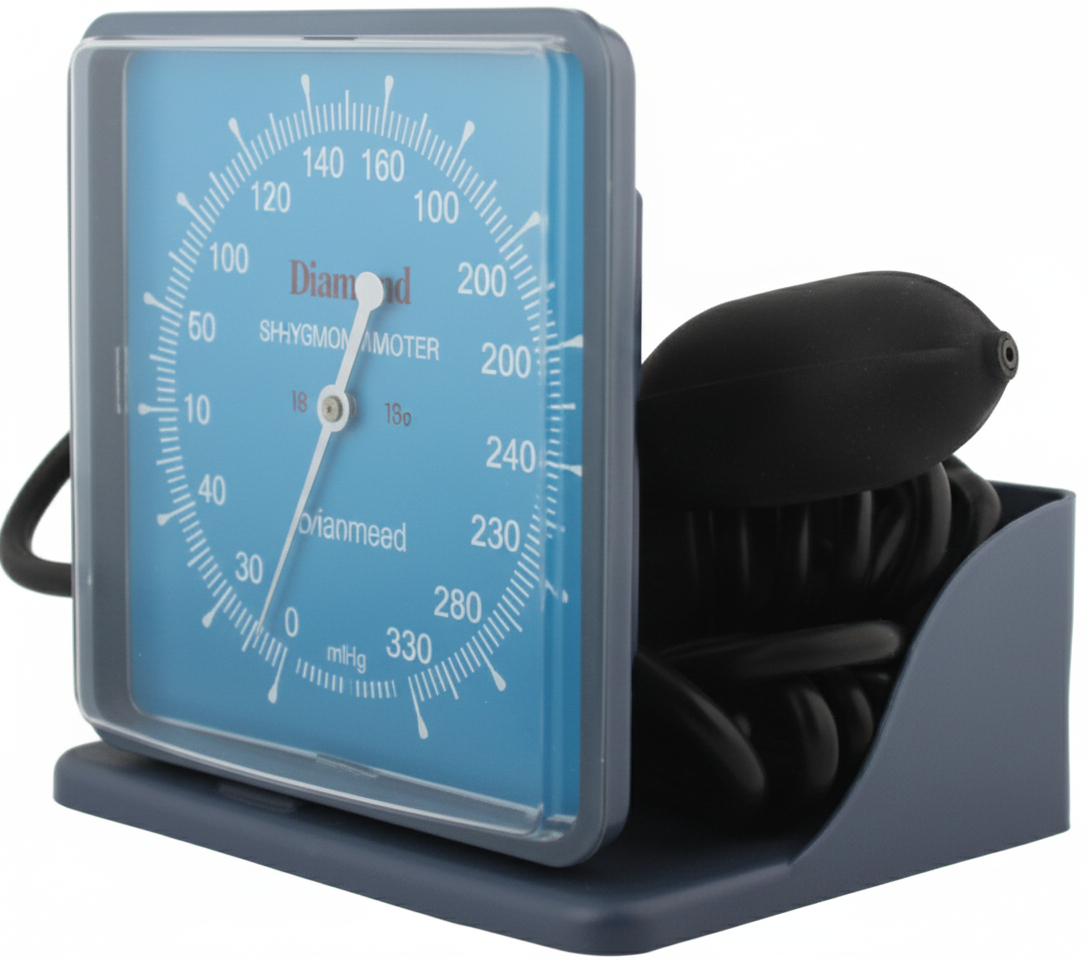

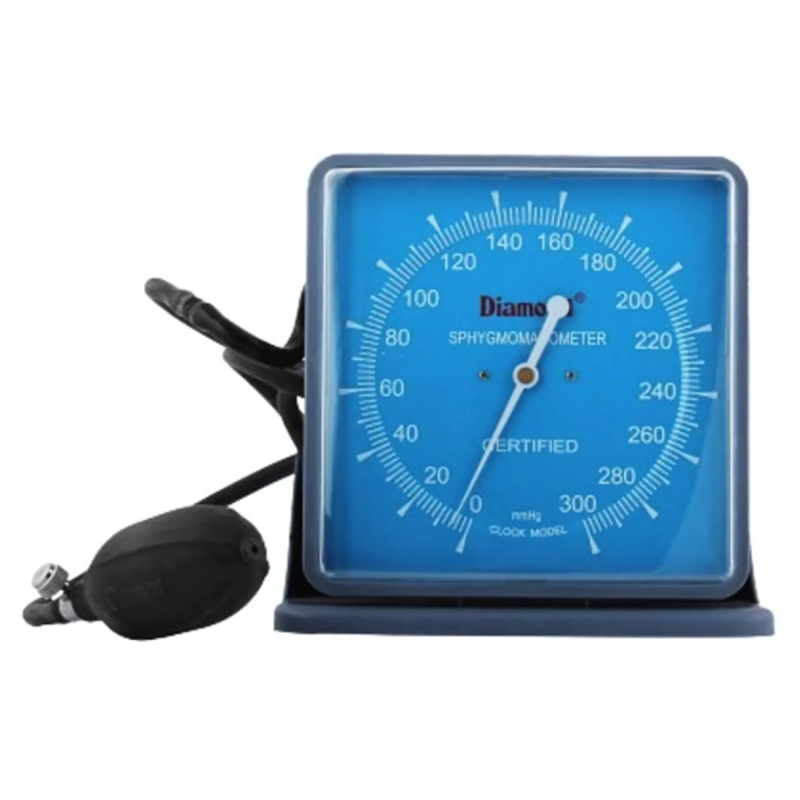

The Diamond BPDL237 Clock Type Aneroid Blood Pressure Apparatus is a manual upper-arm blood pressure measuring device designed around a large clock-style analogue dial. Its oversized 6 × 6 inch display is intended to make the pressure reading easier to view, including from a greater distance.
The BPDL237 uses a conventional manual inflation system with a rubber bulb, cuff and pressure-control mechanism. Product documentation specifies a 0–300 mmHg pressure display range, while other current listings specify 20–300 mmHg as the measurement range. Because these sources differ, MedIN should verify the exact range printed on its current product before publication.
Its clock-type format allows the unit to be positioned on a desk/table or mounted for wall or stand use, making it particularly practical for clinics, examination rooms and other healthcare environments where a larger, easily visible dial is useful.
Why Choose This Product?
The Diamond BPDL237 is a strong choice for users looking for a large-dial manual BP apparatus rather than a compact digital blood pressure monitor.
Key reasons to choose it:
- Large 6 × 6 inch clock-style dial
- Manual aneroid blood pressure measurement
- Easy-to-view analogue display
- Adjustable/tiltable dial face
- Coiled, expandable rubber tubing
- Manual inflation using rubber bulb
- Suitable for desktop/table placement
- Suitable for wall or stand mounting
- Designed for upper-arm blood pressure measurement
- No batteries or electricity required
- Practical for clinics and examination areas
Current product references consistently highlight the large dial, adjustable face plate, expandable tubing and multi-position use.
Key Features
Large 6 × 6 Inch Dial
The BPDL237 features a large 6 × 6 inch clock-style dial, designed to improve visibility when reading blood pressure values.
Clock-Type Design
The clock-style format is useful for examination rooms and clinical workstations where the gauge may need to be viewed from a short distance.
Tiltable Face Plate
The dial face can be tilted to a suitable viewing angle, helping users position the display according to their setup.
Coiled Expandable Tubing
The apparatus uses coiled, expandable rubber tubing designed to provide flexibility during use.
Manual Inflation
The cuff is inflated manually using a rubber bulb, making the device independent of batteries or mains electricity.
Multi-Placement Design
The BPDL237 can be used on a desk/table and is also described in current listings as suitable for stand or wall mounting.
Aneroid Measurement
It uses an analogue pressure gauge rather than an electronic digital display.
Benefits
- Large dial is easier to observe than a small analogue gauge
- Suitable for clinical examination areas
- Can be positioned according to the user's workspace
- No batteries required
- No electrical power required
- Manual design is suitable for trained healthcare users
- Expandable tubing provides flexibility
- Tiltable dial improves viewing convenience
- Useful for routine blood pressure assessment
- Suitable for hospitals, clinics and healthcare facilities
Technical Specifications
| Specification |
Details |
| Brand |
Diamond |
| Model |
BPDL237 |
| Product Type |
Aneroid Blood Pressure Apparatus |
| Design |
Clock Type |
| Measurement Method |
Manual / Auscultatory |
| Measurement Site |
Upper Arm |
| Dial Size |
6 × 6 inches |
| Pressure Display Range |
0–300 mmHg* |
| Measurement Range |
20–300 mmHg* |
| Resolution |
2 mmHg* |
| Pressurization |
Manual rubber bulb |
| Deflation |
Pressure-control valve |
| Display |
Analogue dial |
| Face Plate |
Tiltable |
| Tubing |
Coiled / expandable rubber tubing |
| Mounting |
Desktop / table / stand / wall* |
| Cuff |
Adult cuff* |
| Power Requirement |
No battery/electricity required |
| Application |
Manual blood pressure measurement |
| Intended Users |
Trained healthcare users |
| Accuracy |
As per manufacturer specifications |
| Weight |
As per manufacturer specifications |
| Warranty |
As per manufacturer specifications |
| Country of Origin |
India* |
Frequently Asked Questions
1. What is the Diamond BPDL237?
The Diamond BPDL237 is a clock-type aneroid blood pressure apparatus designed for manual upper-arm blood pressure measurement. It features a large analogue dial for easier viewing.
2. What does BPDL237 stand for?
BPDL237 is the model designation used for Diamond's clock-type aneroid blood pressure apparatus.
Note: MedIN's current URL incorrectly uses BDPL237. The product model should be consistently written as BPDL237 across the Shopify page, metadata and image ALT text.
3. What is the dial size of the BPDL237?
The BPDL237 has a 6 × 6 inch large dial designed for improved readability.
4. Is the Diamond BPDL237 digital?
No. It is a manual aneroid blood pressure apparatus with an analogue clock-style dial.
5. Does the BPDL237 need batteries?
No. The manual apparatus does not require batteries or electricity for operation.
6. Can the BPDL237 be wall mounted?
Yes. Current product references describe the BPDL237 as suitable for desktop, stand and wall applications.
7. Can the dial angle be adjusted?
Yes. The face plate can be tilted to a suitable viewing angle.
8. Is the BPDL237 suitable for hospitals and clinics?
Yes. Its large dial and clock-style format make it particularly suitable for healthcare workstations, examination rooms and clinical environments.
9. Can it be used at home?
It can be used at home by someone trained in manual blood pressure measurement. For uncomplicated self-monitoring, a validated automated upper-arm BP monitor may be easier for many users.
10. Does the BPDL237 diagnose hypertension?
No. It measures blood pressure. A healthcare professional should interpret readings alongside the patient's clinical circumstances.
