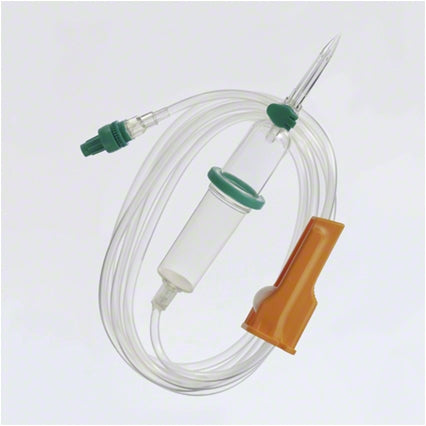

The B. Braun Intrafix SafeSet BCV 180 cm IV Administration Set is a sterile, disposable infusion administration set designed for controlled fluid delivery in clinical infusion applications. It features a 180 cm tube, roller clamp for flow control, AirStop and PrimeStop systems, and one integrated back-check valve (BCV).
The set uses an IV standard spike for container connection and a male Luer-Lock connection for secure connection to compatible infusion components. Its drip chamber incorporates an AirStop fluid filter with 3 µm particle retention, while the tubing has a 3.00 mm inner diameter and 4.10 mm outer diameter.
B. Braun lists this model as a pressure administration set with a maximum pressure of 2.0 bar. It is compatible with specified B. Braun Infusomat systems, including Infusomat Space P, Infusomat compact plus P and Infusomat P.
Why Choose This Product?
The Intrafix SafeSet BCV is suitable when a healthcare facility requires a dependable IV administration line with integrated features for infusion management.
Key reasons to consider it:
-
180 cm tubing provides practical length for clinical setup.
-
Back-check valve (BCV) helps manage unwanted backflow within the administration line.
-
AirStop system is incorporated into the drip chamber.
-
PrimeStop system supports handling during priming and connection.
-
Roller clamp enables manual flow adjustment.
-
3 µm fluid filtration helps retain particles according to the manufacturer's specification.
-
Sterile and disposable design supports single-use clinical workflows.
-
Latex-free and DEHP-free product specification.
- Compatible with selected B. Braun infusion pumps.
Key Features
- B. Braun Intrafix SafeSet
- BCV – Back Check Valve
- 180 cm tubing length
- Pressure administration set
- IV standard spike
- Male Luer-Lock connection
- Roller clamp flow controller
- AirStop fluid filter
- PrimeStop system
- 3 µm particle retention
- 20 drops/ml
- One back-check valve
- Sterile and disposable
- EO or Gamma sterilization
- Latex-free
- DEHP-free
- PVC tubing
- Peel-pack packaging
- Maximum pressure: 2.0 bar
Benefits
Controlled Infusion Setup
The roller clamp provides manual control over fluid flow, making the set suitable for controlled infusion setups.
Backflow Management
The integrated back-check valve is designed to help prevent undesired reverse flow within the administration line.
Air Management Features
The Intrafix SafeSet incorporates AirStop and PrimeStop features as part of its administration-line design.
Practical 180 cm Length
The 180 cm tubing length offers useful reach between the fluid container and the patient's infusion access point while maintaining a manageable line length.
Sterile Single-Use Design
The product is supplied sterile and is intended for disposable use, making it appropriate for single-use clinical workflows.
Technical Specifications
| Specification |
Details |
| Brand |
B. Braun |
| Product Name |
Intrafix® SafeSet |
| Product Type |
Administration Set |
| Application |
Infusion |
| Administration Type |
Pressure |
| REF / Product Code |
4063001 |
| Tubing Length |
180 cm |
| Inner Tube Diameter |
3.00 mm |
| Outer Tube Diameter |
4.10 mm |
| Priming Volume |
23.050 ml |
| Container Connector |
IV Standard Spike |
| Connection |
Luer-Lock / Male |
| Fluid Filter |
AirStop |
| Filter Position |
Drip Chamber |
| Particle Retention |
3 µm |
| Drop Factor |
20 drops/ml |
| Air Ventilation |
Vented |
| Flow Control |
Roller Clamp |
| AirStop |
Yes |
| PrimeStop |
Yes |
| Back Check Valves |
1 |
| Needle-Free Valves |
None |
| Injection Access |
No |
| Maximum Pressure |
2.0 bar |
| Material |
PVC |
| Latex |
No |
| DEHP |
No |
| Nickel |
No |
| Light Protection |
No |
| Sterility |
Sterile |
| Sterilization Method |
EO or Gamma |
| Use |
Disposable |
| Packaging |
Peel Pack |
| Pump Compatibility |
Infusomat® Space P, Infusomat® compact plus P, Infusomat® P |
Frequently Asked Questions
1. What is B. Braun Intrafix SafeSet BCV?
B. Braun Intrafix SafeSet BCV is an IV administration set designed for infusion applications. This particular model includes one integrated back-check valve and has a 180 cm tubing length.
2. What is the product code of this Intrafix SafeSet?
The product code/REF for this model is 4063001.
3. What is the tubing length?
The tubing length is 180 cm, equivalent to approximately 71 inches.
4. Does this IV set have a back-check valve?
Yes. The product specification lists one back-check valve (BCV).
5. Does the Intrafix SafeSet BCV have an injection port?
No. The manufacturer's specification lists zero injection accesses and states that injection access is not provided.
6. Is this IV administration set sterile?
Yes. B. Braun specifies the product as sterile, with sterilization by EO or Gamma.
7. Is B. Braun Intrafix SafeSet BCV reusable?
No. It is specified as a disposable product.
8. What type of filter does it use?
The set uses an AirStop fluid filter positioned in the drip chamber, with a specified particle retention of 3 µm.
9. Is the Intrafix SafeSet BCV latex-free?
Yes. The B. Braun specification states that the product does not contain latex. It also specifies that the product does not contain DEHP.
10. Which B. Braun infusion pumps are listed as compatible?
The B. Braun catalogue lists Infusomat Space P, Infusomat compact plus P and Infusomat P under pump compatibility for this model. Always verify compatibility with the exact equipment configuration before use.
