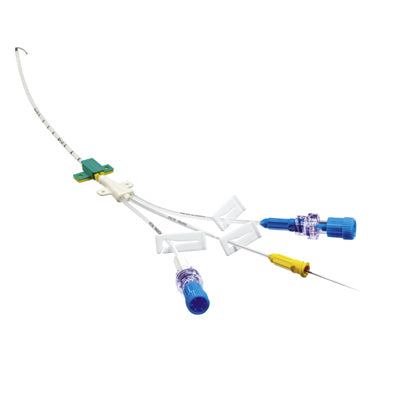

The B. Braun Certofix® Trio V 715 is a triple-lumen central venous catheter set designed for professional central venous access using the Seldinger technique. The catheter has an outer diameter of 7 Fr (2.40 mm) and a length of 15 cm (6 inches). B. Braun specifies the catheter material as polyurethane (PUR).

The three-lumen configuration consists of a 16G distal lumen, 18G medial lumen and 18G proximal lumen. The set includes a kink-resistant 50 cm guidewire, valve cannula, ECG cable, Safsite connector, mini scalpel and 5 mL syringe, making it a comprehensive catheterisation set for appropriate clinical environments.

The product is identified by REF 4162153 and is supplied as a sterile, disposable, EO-sterilised medical device. It is intended for use by appropriately trained healthcare professionals in accordance with applicable clinical protocols and the manufacturer's instructions.

Why Choose This Product?

Triple-Lumen Configuration

Certofix Trio V 715 provides three separate lumens through one central venous catheter:

• Distal: 16G
• Medial: 18G
• Proximal: 18G

This configuration can provide multiple access channels when clinically required.

15 cm Catheter Length

The catheter has a 15 cm length, making it a specific configuration within the Certofix Trio range.

Professional Catheterisation Set

The set includes several components required for the catheterisation procedure, including the guidewire, valve cannula, dilator, ECG cable, syringe and scalpel.

ECG Cable Included

An ECG connection cable is included in the product configuration, supporting the manufacturer's ECG-based approach to catheter positioning.

Sterile & Disposable

The manufacturer specifies the product as sterile, disposable and EO sterilised.

Key Features

• Brand: B. Braun
• Product Range: Certofix® Trio
• Model: V 715
• REF: 4162153
• Product Type: Central Venous Catheter
• Catheter Configuration: Triple lumen
• Catheter Size: 7 Fr
• Catheter Length: 15 cm / 6"
• Catheter Outer Diameter: 2.40 mm
• Catheter Material: Polyurethane (PUR)
• Introduction Technology: Seldinger
• Venous Access Sites: Jugular, subclavian, axillary
• Distal Lumen: 16G
• Medial Lumen: 18G
• Proximal Lumen: 18G
• Guidewire Length: 50 cm
• Guidewire Diameter: 0.890 mm
• Guidewire: Kink-resistant
• Cannula: Valve cannula
• Cannula Gauge: 18G
• Cannula Length: 70 mm
• ECG Cable: Included
• Connector: Safsite
• Scalpel: Mini
• Syringe: 5 mL
• Packaging: Peel pack
• Sterility: Sterile
• Sterilisation: EO
• Use: Disposable
• Antimicrobial Coating: Non-coated
• PVC: Product contains PVC
• Latex: No
• DEHP: No
• Nickel: Yes

Benefits

• Provides three separate central venous access lumens.
• Combines the catheter and key insertion accessories in one set.
• 15 cm catheter length provides a defined configuration for appropriate applications.
• Kink-resistant guidewire is supplied with the set.
• ECG cable is included.
• Safsite connector is included.
• Polyurethane catheter construction.
• Length markings support controlled catheter placement.
• Colour-coded Luer-Lock fittings help identify connections.
• Sterile, disposable configuration simplifies product handling in clinical settings.
• Designed for professional central venous catheterisation using the Seldinger technique.

Technical Specifications

Frequently Asked Questions

1. What is B. Braun Certofix Trio V 715?

B. Braun Certofix Trio V 715 is a triple-lumen central venous catheter designed for professional central venous catheterisation using the Seldinger technique.

2. What is the catheter size of Certofix Trio V 715?

The catheter has a 7 Fr size and an outer diameter of approximately 2.40 mm.

3. What is the length of Certofix Trio V 715?

The catheter length is 15 cm, equivalent to approximately 6 inches.

4. How many lumens does Certofix Trio V 715 have?

It has three lumens: a 16G distal lumen, 18G medial lumen and 18G proximal lumen.

5. What is the REF number?

The B. Braun reference/article number is 4162153.

6. What is the guidewire length?

The supplied guidewire is 50 cm long with an outer diameter of 0.890 mm. B. Braun specifies it as a kink-resistant guidewire.

7. Does Certofix Trio V 715 include an ECG cable?

Yes. The product specification lists an ECG cable as included.

8. What connector is supplied with the set?

The product specification identifies a Safsite connector.

9. Is Certofix Trio V 715 sterile?

Yes. B. Braun specifies the product as sterile and identifies EO as its sterilisation method.

10. Is Certofix Trio V 715 reusable?

No. B. Braun identifies the product as disposable.
